Configuration & setup in odoo:-

Navigate to the menu "Website -> products -> choose any product with variants or add Variants and their values"

This product has 3 attributes and their values

You can add more variants and their values for display on the website

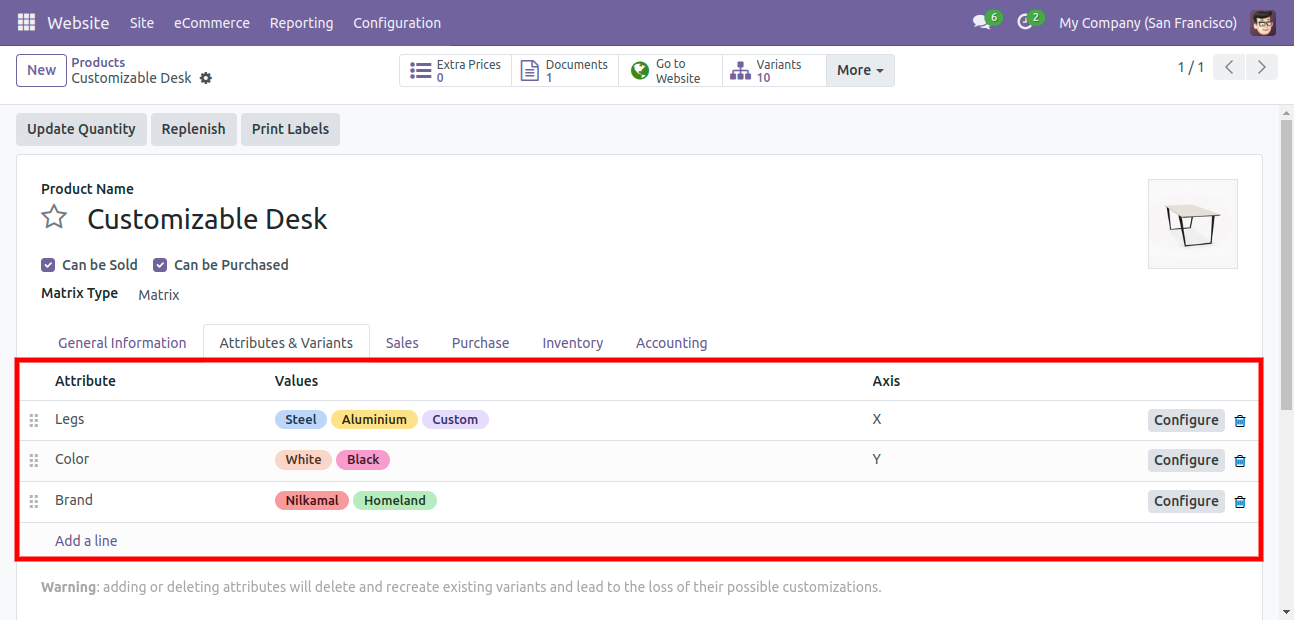

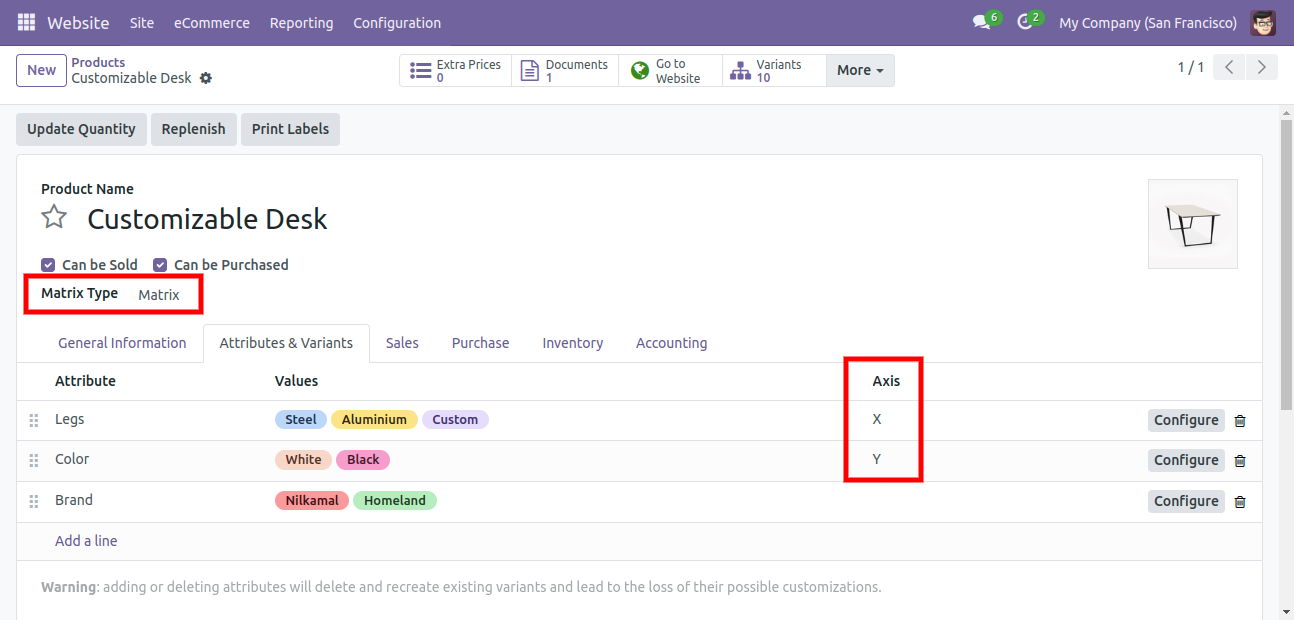

Now First select matrix Type for display on the website, also for the matrix, there is an option for the axis which attribute and value to be shown on which axis.

You can select only 2 attributes for the axis.

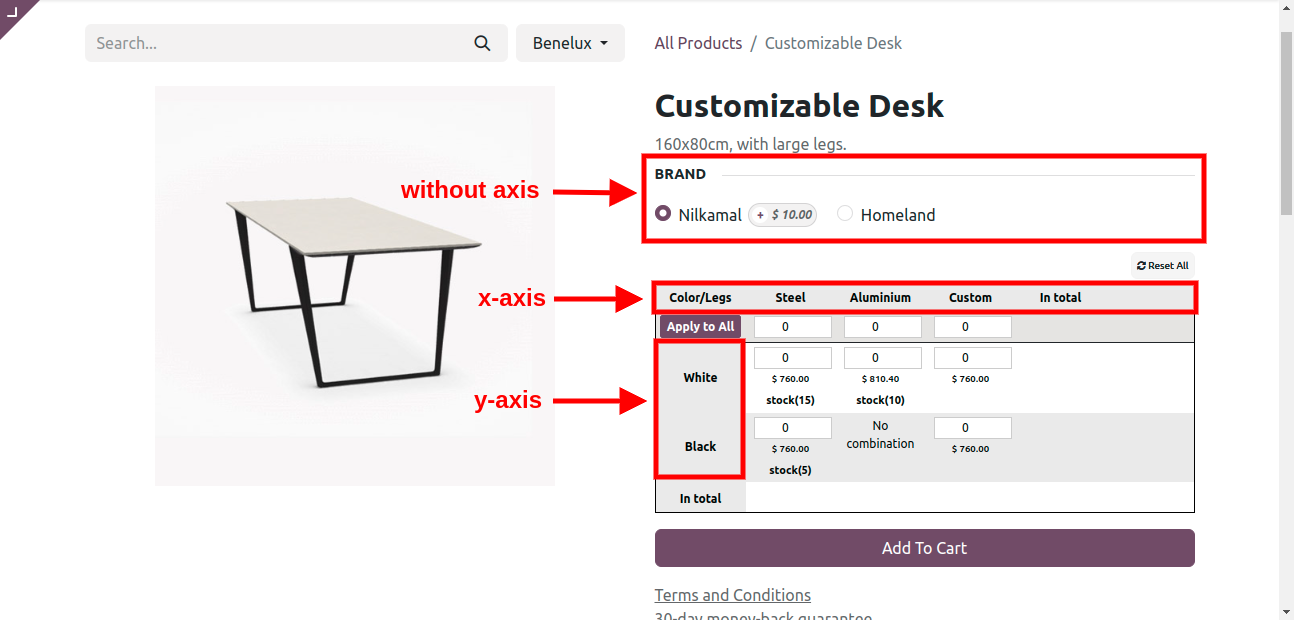

Following is the matrix output on the website, here we can see all product variants in the matrix view as per the axis.

Here you can see the legs on the x-axis and colors on the y-axis.

The brands are shown as default because there is no axis are selected.

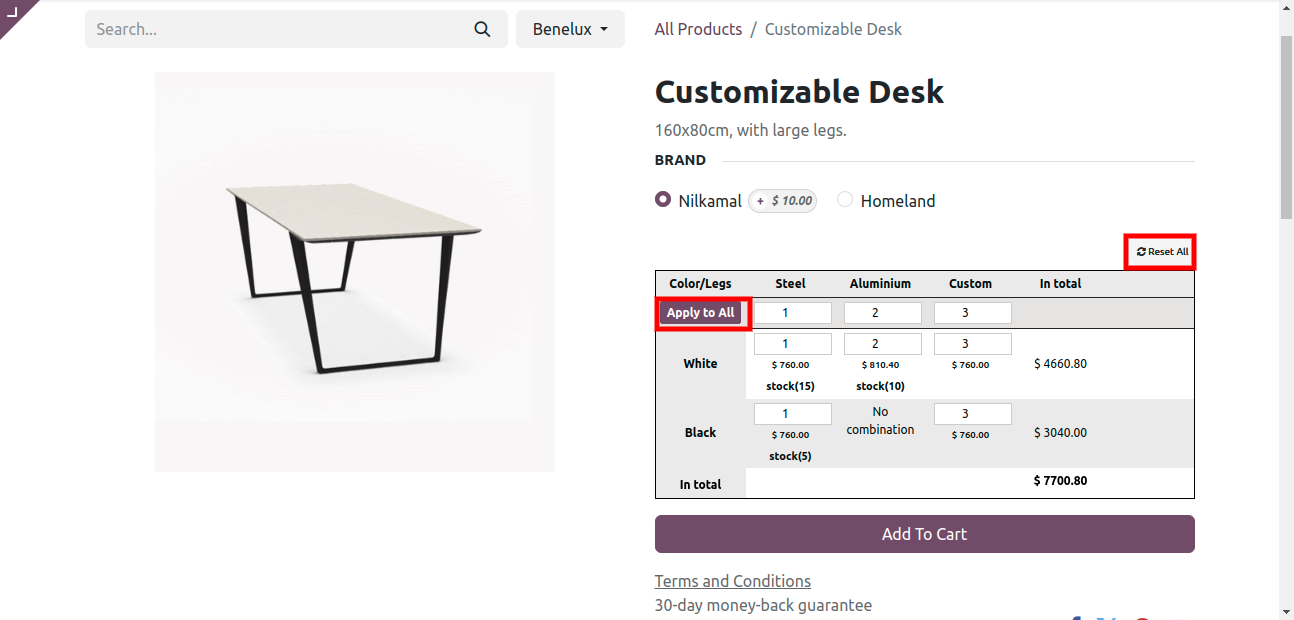

• Now you can add inputs for the product, if you click on apply to all button then qty will be set for all variants.

• If I add the quantities in the attribute's values and then click the button apply to all button then the quantity is automatically set for all attribute values.

• Also, you can reset all fill data by clicking on reset all.

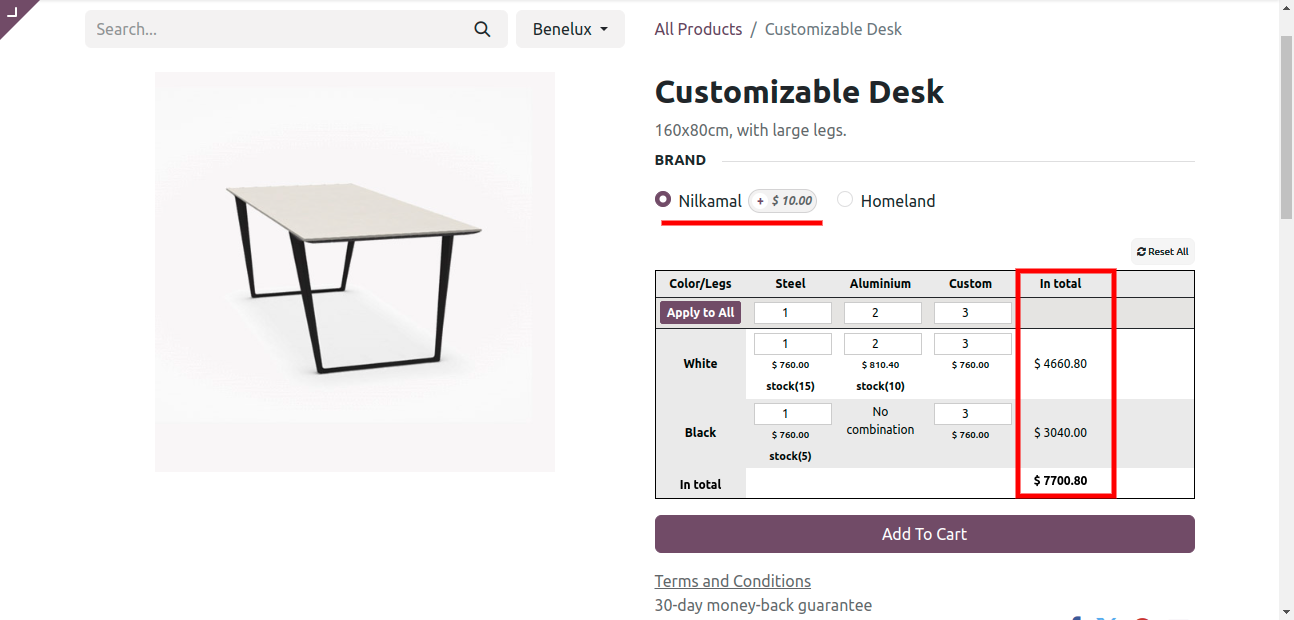

• you can see the qty will be set for all variants and will show the total price.

• Also, another variant brand is selected and that brand price configured.

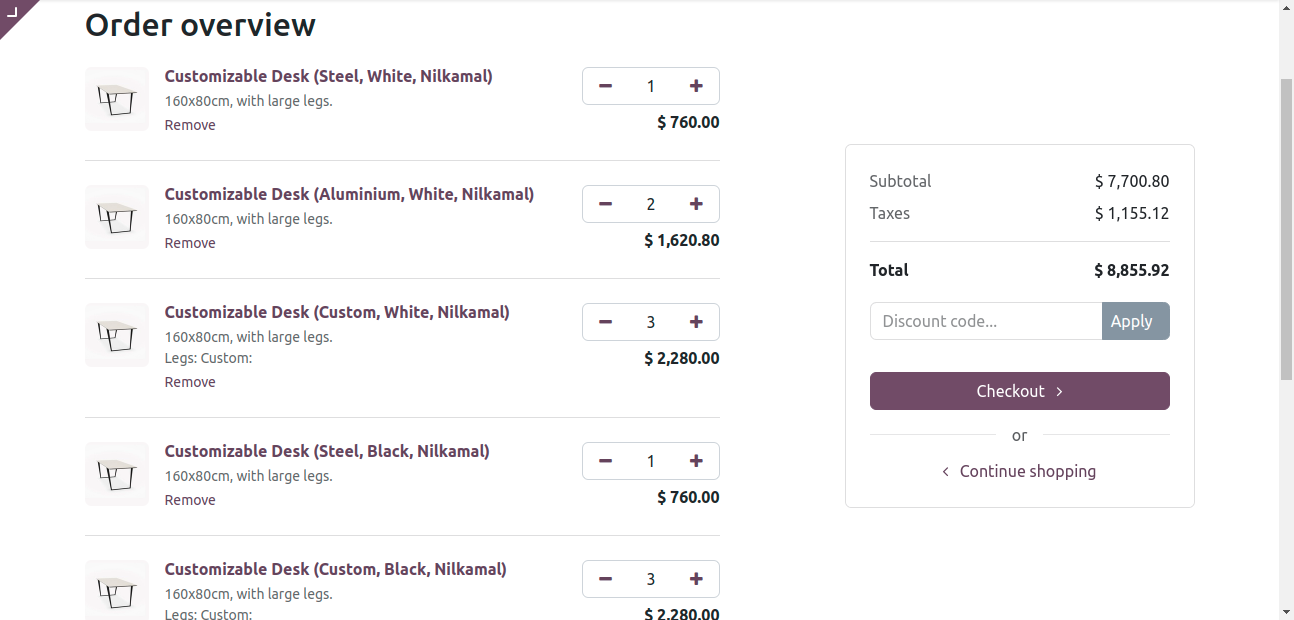

Now if you click on Add To Cart then all products are added to the cart with qty and variants and then the checkout process takes place.

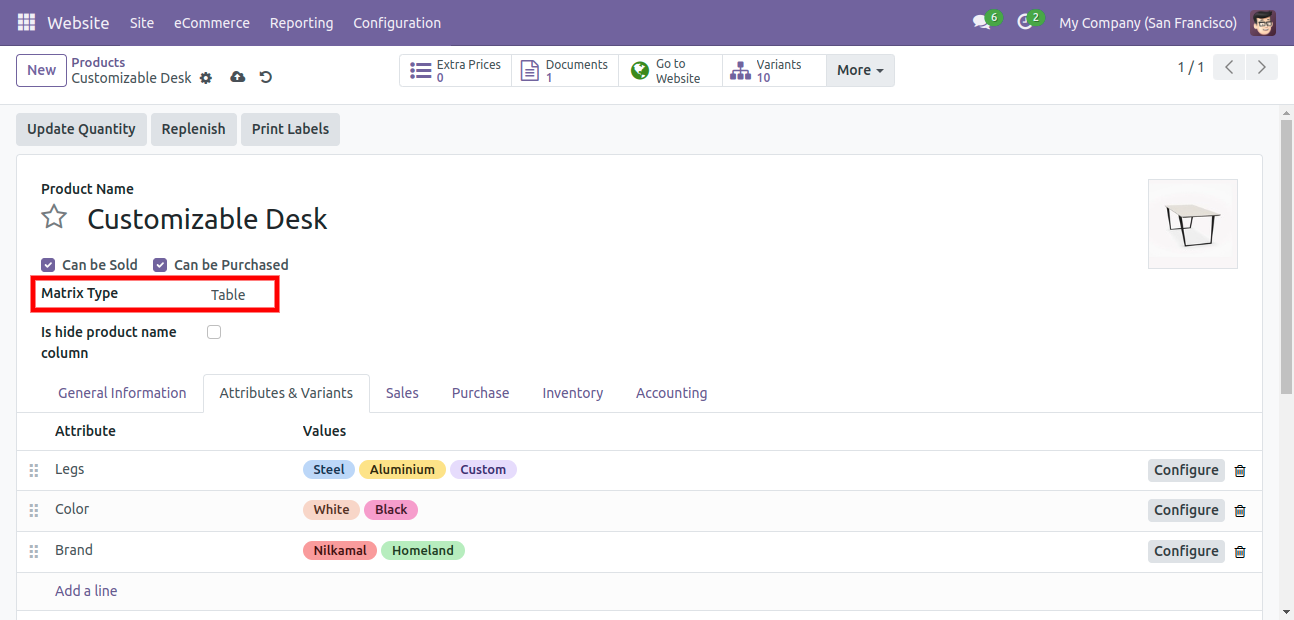

Same for the table view here is the option for the table, select type is the table.

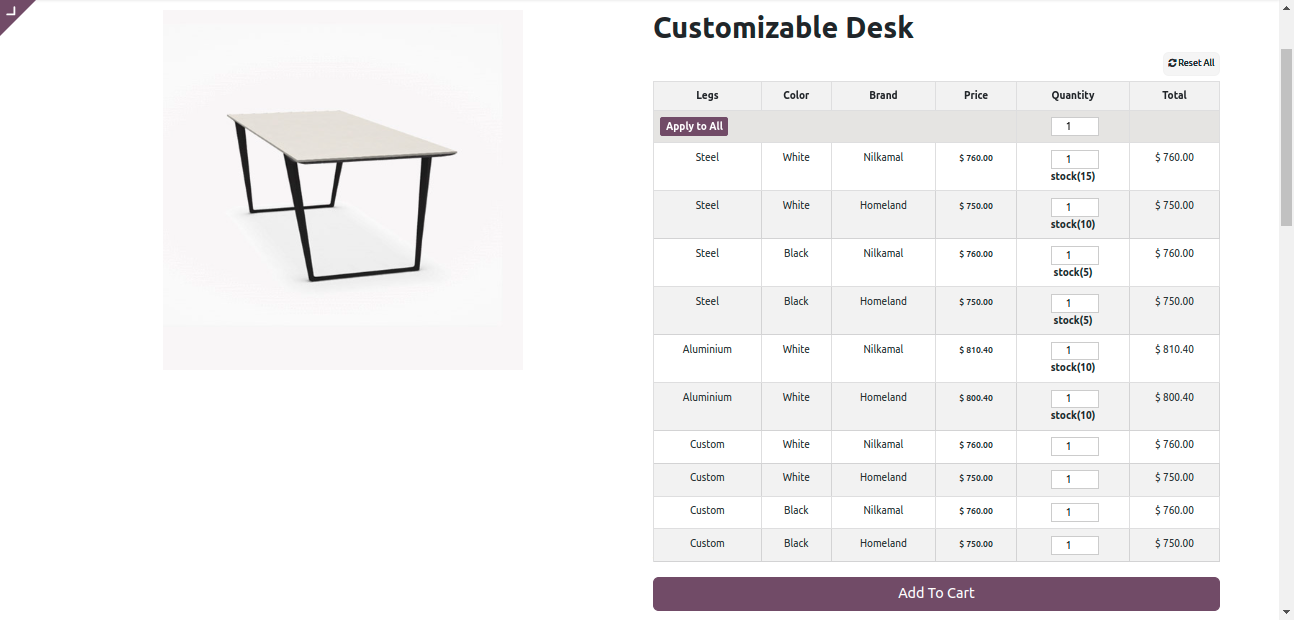

The variants are shown in the table on the product detail page.

If you want to hide the Name in the table then there is a boolean to hide the name in the table.

Without a name, the table looks like this.

The same functionality for adding to all and reset all for the table.

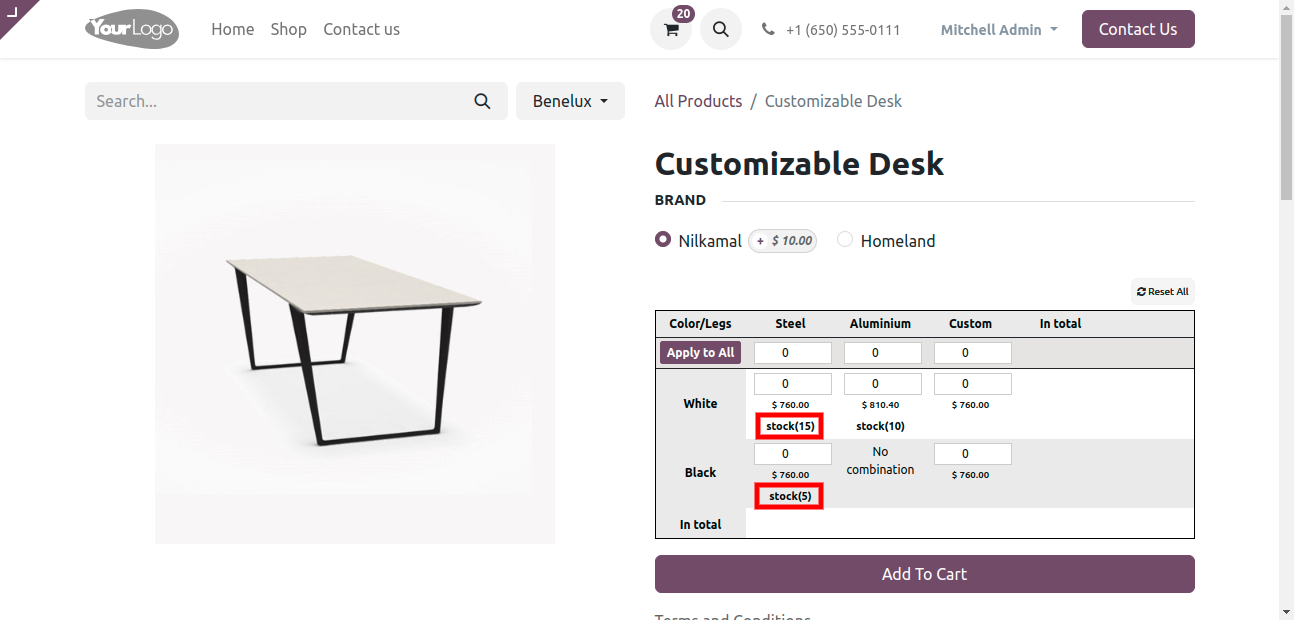

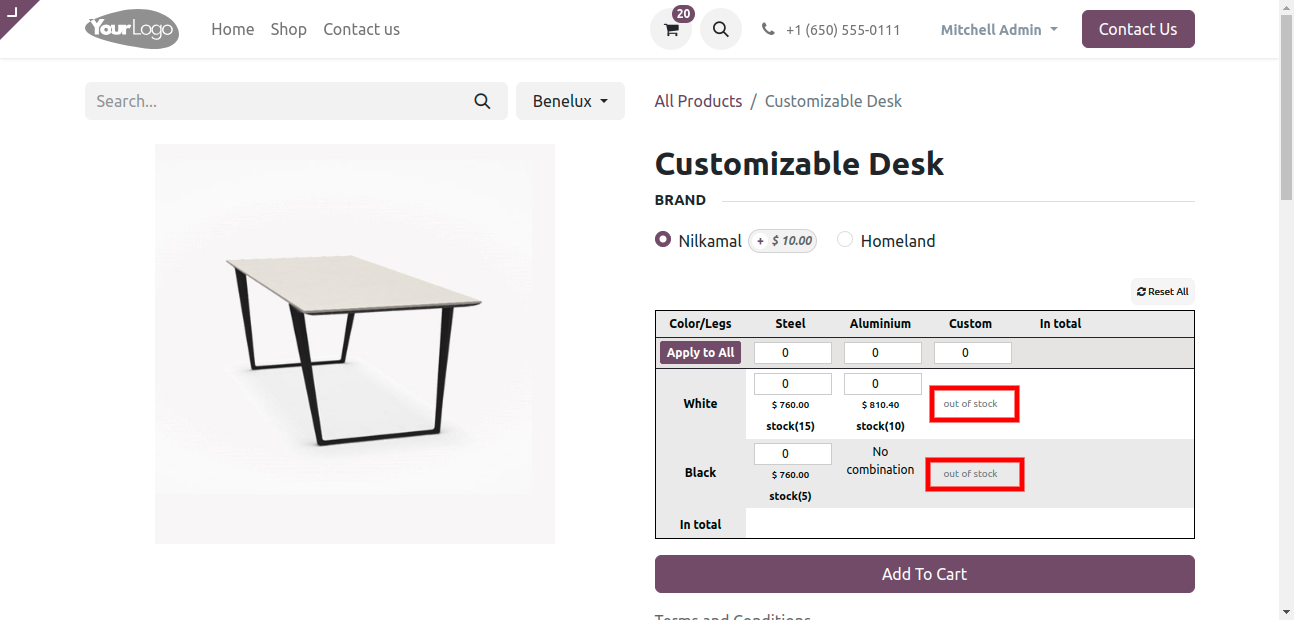

If the out-of-stock status is Continue Selling and product variants have onhand quantity and the quantity is only below the available quantity then the product stock is shown in the table and matrix.

If the out-of-stock status is not Continue Selling and product variants have no onhand quantity then the product is out of stock, as shown in the table and matrix.
